Rises at sunset, retracts at sunrise, maintaining clean landscapes during daylight hours!

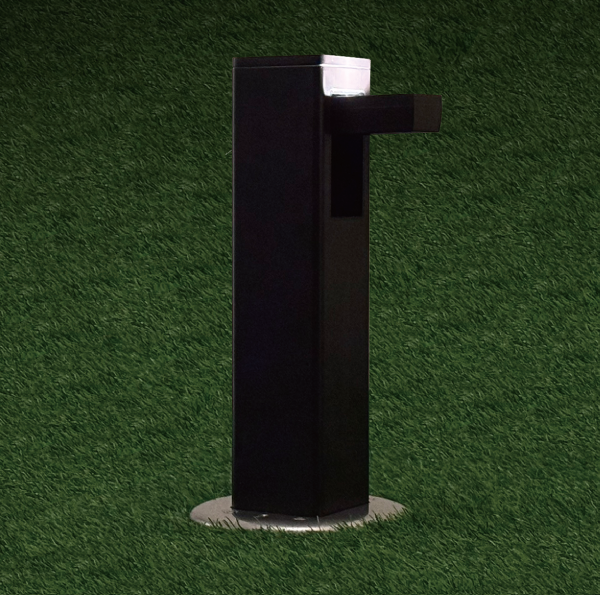

EL70U-AF
| WALL WASH | UPLIGHTING
| Auto Flip Upward Illumination
As part of the next-generation ElevateLUX FLIP series, the EL70U-AF redefines landscape integration. Setting it apart from the original series, the light source module automatically flips upward by 90° once the luminaire fully extends to its peak height. Featuring a precision 13°x17° narrow beam angle, this premium model is specifically engineered for powerful, targeted vertical accentuation. It is the definitive choice for illuminating tall foliage—such as palm trees—and delivering dramatic wall grazing effects on architectural facades.
Auto Flip Upward Illumination
Features
- Auto-Flip Mechanism: Automatically rotates 90° upward at peak elevation.
- 10°-90° Dynamic Tuning: Manual micro-adjustments to match complex onsite landscape contours.
- Precision Optics: 13° x 17° narrow beam for tall trees and wall grazing.
- Recalls and restores last adjusted angle (10°–90°) and brightness.
- Extruded aluminum housing & stainless steel.
- Raised height: 6″/12″/24″
- 5W options
- 4 brightness levels available for adjustment
- CCT Options : 2700K / 3000K / 4000K / 5000K
- Waterproof Rating : IP67
- Impact Rating: IK10
- Input Voltage: AC12V
- UL 1838, UL8750, CS C22.2 NO.250.7
